Rubber Metal Gaskets

Leading Rubber Metal Gaskets Manufacturers In India

Established in 1998, Horiaki India Pvt. Ltd has been manufacturing highly durable and high on performance Rubber Gaskets for our customers. We manufacture BlackRubber Metal Gaskets for the purposes where natural media like Water, Closed Loop Water Arrangements, SolutedLyes at max 50% conc. and mx 80% have to be sealed.

All our products including Rubber Gaskets KTW or Rubber Gaskets W270 are standardized and are only manufactured with Natural Rubber (SMR) having hardness of DIN 53505, Shore A to make them resistant to water, seawater, pond water, closed loop water up to 90°C and also against alkalines up to some extend like 50% NaOH at 50oC.

Leading Rubber Metal Gaskets Suppliers In India

For effective functioning at even high temperature range of approx. +80°C and for short-term up to +90°C, Horiaki India Pvt. Ltd.  Rubber Metal Gaskets Water Lines, Rubber Metal Gasket DGVW etc. have the density DIN 53479, g/cm3 1.384. We are most prominent as Rubber Metal Gaskets Exporters In India. Based on our own test facilities Horiaki India Pvt. Ltd. manufactured rubber metal gaskets are certified resistant even against natural lighting, weather and ozone. Limited only by the natural properties of vulcanized rubber our rubber metal Gaskets are not resistant against fuel, mineral oils, acids and gases.

Get A Free Quotes

Please enable JavaScript in your browser to complete this form.

Official Information

  • A-21/20, Mepz-sez, Tambaram, Chennai,Tamil Nadu
  • (+91) 9840927419
  • raj@horiaki.com

Company Details

All information about the company as well as products.

Specifications Chemical resistance Functions & durability
Materials NR=Natural Rubber(SMR),EPDM ,FKM, Silicon
Application Field Water, Closed Loop Water Arrangements, Soluted Lyes at max 50% conc. and mx 80%
Color Black
Hardness DIN 53505, Shore A 60-80 +/-5
Density DIN 53479, g/cm3 1.384
Temperature Approx. +80°c, Short-term Up to +90°c
Certificates Approval of own test facility.
  • Vulcanisates of natural rubber (NR) are resistant against: water, seawater, pond water, closed loop water up to 90°C
  • Partly against alkalines, 50% NaOH at 50°C
  • Sufficient resistant against natural lighting, weather and ozone
  • Vulcanisates of natural rubber (NR) are not resistant against:fuel, mineral oils, acids and gases

The performance and life of Horiaki gaskets depend in large measure on proper storage and fitting, factors beyond the manufactor’s control.We can, however, vouch for the excellent quality of our products.With this in mind, please also observe our installation instructions

Products Details

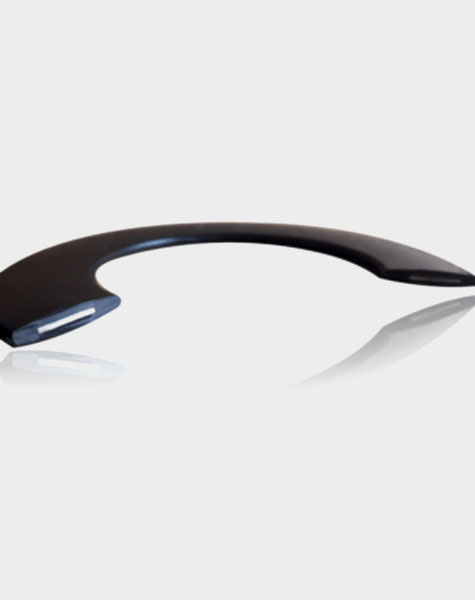

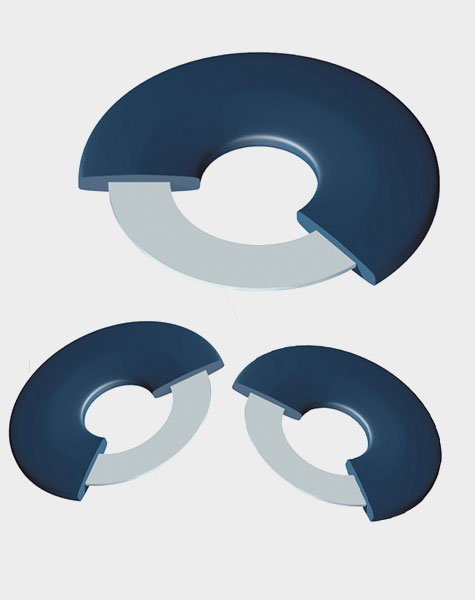

The gaskets are made of elastomere butadien-rubber in different types -with inside vulcanised steel ring.

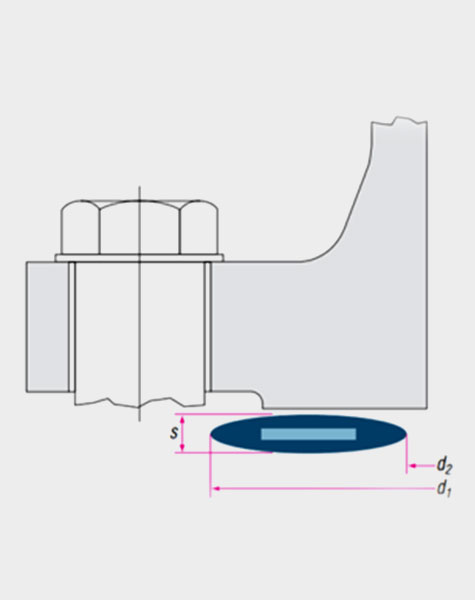

Sizes at the measurement table:

  • d1 = Inner diameter
  • d2 = Outer diameter
  • s = Thickness

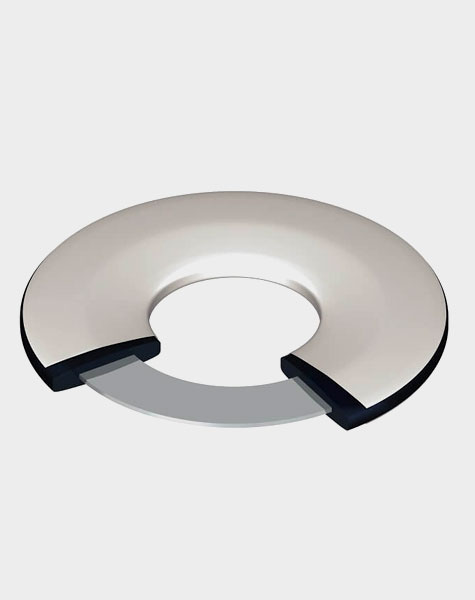

  • Vulcanised rubber gasket, cross section in lens form, rounded edges.

  • Inside vulcanised steel ring, therefore good reception of the bolt force.

  • Outer diameter of the gaskets fits to the inner bolt circuit for self centering.

  • Dimension in DIN EN 1514-1(replaces DIN 2690 ) for the pressure ratings PN 6 to PN 40.

  • DN 15 up to DN 2000





























































































































































































































































































































      d2
DN s d1 PN
      6 10 16 25 40
15 4 22 - 51 51 51 51
20 4 27 - 61 61 61 61
25 4 34 - 71 71 71 71
32 4 43 76 82 82 82 82
40 4 49 - 92 92 92 92
50 4 61 96 107 107 107 107
65 4 77 116 127 127 127 127
80 4 89 - 142 142 142 142
100 5 115 152 162 162 168 168
125 5 141 182 192 192 194 194
150 5 169 207 218 218 224 224
200 6 220 262 273 273 284 290
250 6 273 317 328 329 340 352
300 6 324 373 378 389 400 417
350 7 356 423 428 444 457 474
400 7 407 473 489 495 514 546
450 7 458 - 539 - - -
500 7 508 578 594 617 624 -
600 7 610 679 695 734 731 747
700 8 712 784 810 804 833 -
800 8 813 890 917 911 942 -
900 8 915 990 1017 1011 1042 -
1000 8 1016 1090 1124 1128 1154 -
1100 8 1120 - - 1228 1254 -
1200 8 1220 1307 1341 1342 1364 -
1400 8 1420 1524 1548 1542 1578 -
1600 8 1620 1724 1772 1764 1798 -
1800 8 1820 1931 1972 1964 2000 -
2000 8 2020 2138 2182 2168 2230 -

The gaskets are made of elastomere butadien-rubber in different types -with inside vulcanised steel ring.



Sizes at the measurement table:

  • d1 = Inner diameter

  • d2 = Outer diameter

  • s = Thickness


  • Vulcanised rubber gasket, cross section in lens form, rounded edges.

  • Inside vulcanised steel ring, therefore good reception of the bolt force.

  • Outer diameter of the gaskets fits to the inner bolt circuit for self centering.

  • Dimension in DIN EN 1514-1 (replaces DIN 2690 ) for the pressure ratings PN 6 to PN 40.

  • DN 15 TO 2000






























































































































































































































































































































      d2
DN s d1 PN
      6 10 16 25 40
15 4 22 - 51 51 51 51
20 4 27 - 61 61 61 61
25 4 34 - 71 71 71 71
32 4 43 76 82 82 82 82
40 4 49 - 92 92 92 92
50 4 61 96 107 107 107 107
65 4 77 116 127 127 127 127
80 4 89 - 142 142 142 142
100 5 115 152 162 162 168 168
125 5 141 182 192 192 194 194
150 5 169 207 218 218 224 224
200 6 220 262 273 273 284 290
250 6 273 317 328 329 340 352
300 6 324 373 378 389 400 417
350 7 356 423 428 444 457 474
400 7 407 473 489 495 514 546
450 7 458 - 539 - - -
500 7 508 578 594 617 624 -
600 7 610 679 695 734 731 747
700 8 712 784 810 804 833 -
800 8 813 890 917 911 942 -
900 8 915 990 1017 1011 1042 -
1000 8 1016 1090 1124 1128 1154 -
1100 8 1120 - - 1228 1254 -
1200 8 1220 1307 1341 1342 1364 -
1400 8 1420 1524 1548 1542 1578 -
1600 8 1620 1724 1772 1764 1798 -
1800 8 1820 1931 1972 1964 2000 -
2000 8 2020 2138 2182 2168 2230 -

The gaskets are made of elastomere butadien-rubber in different types -with inside vulcanised steel ring.



Sizes at the measurement table:

  • d1 = Inner diameter

  • d2 = Outer diameter

  • s = Thickness

  • Vulcanised rubber gasket, cross section in lens form, rounded edges.

  • Inside vulcanised steel ring, therefore good reception of the bolt force.

  • Outer diameter of the gaskets fits to the inner bolt circuit for self centering.

  • Dimension in DIN EN 1514-1 (replaces DIN 2690 ) for the pressure ratings PN 6 to PN 40.

  • DN 15 TO 2000































































































































































































































































































































      d2
DN s d1 PN
      6 10 16 25 40
15 4 22 - 51 51 51 51
20 4 27 - 61 61 61 61
25 4 34 - 71 71 71 71
32 4 43 76 82 82 82 82
40 4 49 - 92 92 92 92
50 4 61 96 107 107 107 107
65 4 77 116 127 127 127 127
80 4 89 - 142 142 142 142
100 5 115 152 162 162 168 168
125 5 141 182 192 192 194 194
150 5 169 207 218 218 224 224
200 6 220 262 273 273 284 290
250 6 273 317 328 329 340 352
300 6 324 373 378 389 400 417
350 7 356 423 428 444 457 474
400 7 407 473 489 495 514 546
450 7 458 - 539 - - -
500 7 508 578 594 617 624 -
600 7 610 679 695 734 731 747
700 8 712 784 810 804 833 -
800 8 813 890 917 911 942 -
900 8 915 990 1017 1011 1042 -
1000 8 1016 1090 1124 1128 1154 -
1100 8 1120 - - 1228 1254 -
1200 8 1220 1307 1341 1342 1364 -
1400 8 1420 1524 1548 1542 1578 -
1600 8 1620 1724 1772 1764 1798 -
1800 8 1820 1931 1972 1964 2000 -
2000 8 2020 2138 2182 2168 2230 -

The gaskets are made of elastomere butadien-rubber in different types -with inside vulcanised steel ring.



Sizes at the measurement table:

  • d1 = Inner diameter

  • d2 = Outer diameter

  • s = Thickness

  • Vulcanised rubber gasket, cross section in lens form, rounded edges.
  • Inside vulcanised steel ring, therefore good reception of the bolt force.

  • Outer diameter of the gaskets fits to the inner bolt circuit for self centering.

  • Dimension in DIN EN 1514-1 (replaces DIN 2690 ) for the pressure ratings PN 6 to PN 40.

  • DN 15 TO 2000






























































































































































































































































































































      d2
DN s d1 PN
      6 10 16 25 40
15 4 22 - 51 51 51 51
20 4 27 - 61 61 61 61
25 4 34 - 71 71 71 71
32 4 43 76 82 82 82 82
40 4 49 - 92 92 92 92
50 4 61 96 107 107 107 107
65 4 77 116 127 127 127 127
80 4 89 - 142 142 142 142
100 5 115 152 162 162 168 168
125 5 141 182 192 192 194 194
150 5 169 207 218 218 224 224
200 6 220 262 273 273 284 290
250 6 273 317 328 329 340 352
300 6 324 373 378 389 400 417
350 7 356 423 428 444 457 474
400 7 407 473 489 495 514 546
450 7 458 - 539 - - -
500 7 508 578 594 617 624 -
600 7 610 679 695 734 731 747
700 8 712 784 810 804 833 -
800 8 813 890 917 911 942 -
900 8 915 990 1017 1011 1042 -
1000 8 1016 1090 1124 1128 1154 -
1100 8 1120 - - 1228 1254 -
1200 8 1220 1307 1341 1342 1364 -
1400 8 1420 1524 1548 1542 1578 -
1600 8 1620 1724 1772 1764 1798 -
1800 8 1820 1931 1972 1964 2000 -
2000 8 2020 2138 2182 2168 2230 -
